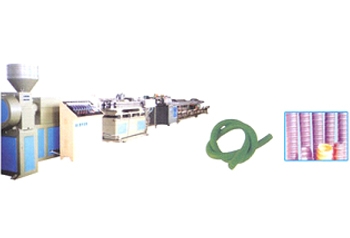

PE、PVC Single wall corrugation pipe production line

Back to Product
The line shall be used to produce small diameter single wall corrugation pipe in PE、PVC and PP raw material.
IMolding corrugation pipe with smooth inside and outside surface, and even ripple at one time by corresponding die.
IUsed as wire and cable passing pipe, washing machine drain pipe, protection pipe for bridge steel winding wire, dust collector pipe and ventiduct
ISmall size corrugation pipe of Φ 4–Φ6.7(mm) are used in car.

The main technique parameter

ModName  Extruder SJ-30/25 SJ-45/25 SJ-65/25
Die block((couple)(couple) 40 42 42
Production pipe range(mm) 4-10 10-40 20-63
Production speed(m/min) 5-10 3-15 2-8
Output(kg/h) 8 30 60
